| ► OMU - Accelerate Wireless Smart Energy Solution |
|
 |
|

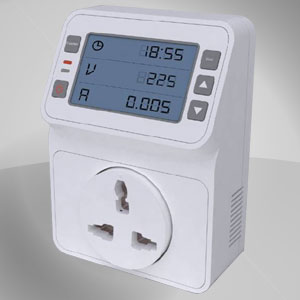

| ▲ 產品外觀 |
|
|
|
| |
| KEY FEATURES |
| ► |
Wireless smart energy application. |
| ► |
Industry-standard IEEE 802.15.4 |
| ► |
Robust topology featuring star, cluster tree and mesh networking. |
| ► |
Data acquisition for V, A, KVA, KW, PF. |
| ► |
Easy-to-use Monitoring Tool and Easy-to develop API. |
|
|
|
|
|
| Order List |
| Outlet Measurement Unit (OMU) |
| Power Input |
110~265Vac, 47~63Hz |
| Max. Input Current |
50A |
| Data Acquisition |
V，A，Hz，KVA，KW ，PF |
| Accuracy |
0.5% (typical) |
| Remote Control |
Allowed to remote control the switch |
| LED |
Power LED
（Green） |
Active：Continues light
Normal：Light off |
Alert LED
（Red） |
Overload Alarm：
Current up to 50A, blink
Overload Protection：
Current up to 50A, continues light |
| Overload Protection |
| Alarm： |
Current up to 50A and keep up to 10sec，Red blink |
| Protected： |
Current up to 50A and keep up to 10sec，Red light and turn off |
| Released： |
Manual，Red off |
|
| Antenna |
Internal Antenna |
| RF Frequency |
433MHz/2.4GHz |
| Data Rate |
250kbps |
| Topology |
Mesh |
| Received Sensitivity |
-100dBm |
| RF Power |
20dBm |
| Power Plug & Jack |
Universal |
| Safety/EMI Standard |
EN60950-1/ EN55022 Class B |
| Working Temperature |
0~40℃ |
| Working Humidity |
10~90% Non-Density |
| Dimension (DxW xH) |
103x75x30mm |
| Weight |
200g |
|
|
|
|
|
