| ► MA8-9g |
|
 |
|

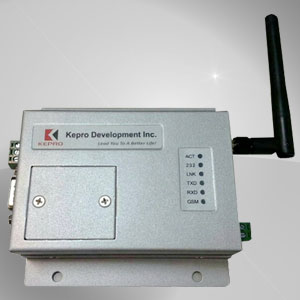

| ▲ Appearance of the product |
|
|
|
| |
3G, smart M2M Terminal
As a light version of MA8-6 , MA8-9g provides a wireless M2M (Machine-to-Machine) platform for applications in various areas of telemetry, telemetric, surveillances, lighting management and etc, via 3G (850/1900/2100 MHz) data communication. Through the industry-standard RS232 and RS485 interfaces, the remote terminal devices can be connected to MA8-9g to enable bi-directional control and management.
Integrated with state-of-art 3G module, MA8-9g is a reliable mechanism to collect and transmit data in a transparent way to the back-end application server. With our PlugMaster intelligent gateway, all the information is easily managed in a TCP/IP environment. |
|
|
|
 |
|
 |
|
|
|
| ▲ PlugMaster™ Network Management Software |
|
▲ Plugene™ Setting Software |
|
|
| Features |
| ► |
3G End-to-End Solution |
► |
Auto-link function |
| ► |
RS232/485 Ports |
► |
Supports IP-based communication protocol |
| ► |
Low power consumption design |
► |
Supports multi-mode communication |
| ► |
Watchdog chip |
|
|
|
|
| Benefits |
| ► |
Wireless network reduces time and cost |
| ► |
Highly reliable serial data network |
| ► |
Plug-and-Play to configure communication format and content |
|
|

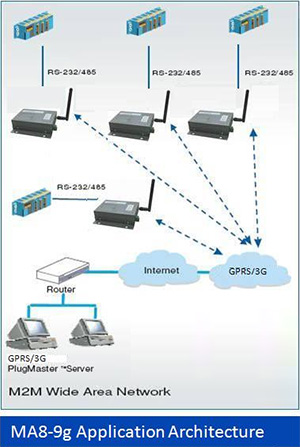

| Application Architecfure |
|
MA8-9g Specification |
 |
|
| |
MA8-9g |
| Memory |
128K SRAM |
| GPRS Module |
3G 850/1900/2100 MHz |
| Data Transmission |
3G |
| Size (LxWxH) |
70 x 102 x 27 mm |
| Watchdog |
Bulit-in |
| RS-232 Male |
Male DB-9 |
| RS-485 Male |
RS-485(2 wire) |
| Input |
DC 9V~30V |
| Stand by |
0.27W~0.6W |
| Power Consumption |
0.27W~1.2W |
Operational
Temperature |
-20℃~85℃ (-4℉~185℉) |
| Storage Temperature |
-40℃~85℃ (-40℉~185℉) |
| Humidity |
5%~95% |
| Certification |
CE、FCC Class A |
|
|
|
|
| PlugMaster™ Demand Platform |
|

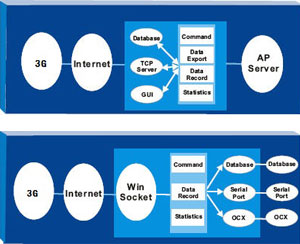

PlugMaster™ System Architecture |
| ► |
Windows NT(SP5)/ Windows2000以上 |
| ► |
Pentium II 350 MHz以上 |
| ► |
64MB or more memory |
| ► |
40MB or more hard disk space |
| ► |
64K over Internet lines |
| ► |
Group 1 real IP and continuous online |
|
|
 |
|
|
|
|
|
|
| |
