| ► MA8-9L 4G LTE |
|
 |
|

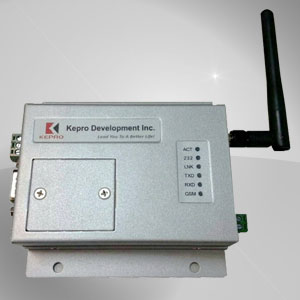

| ▲ MA8-9L 4G Transparent Terminal |
|
|
|
| |
Easy Deployment of 4G M2M Application
Kepro's highly integrated MA8-9L terminal provides the 4G data transparent communication for M2M application that operates in 900/1800/2600MHz tri-band 4G frequency. Along with WirelessPlug's Plugene Software, MA8-9L supports easy configuration on the central IP/DNS and the parameters associated with local serial devices that a complete 4G M2M infrastructure can be quickly established. The compact and flexible terminals offer the quickest and easiest path to standard wireless IP networking, translating to shorter time- to-market in the deployment of your wireless enabled products. |
|
|
|
 |
|
 |
|
|
|
▲ M2M Terminal Configuration
Software Plugene |
|

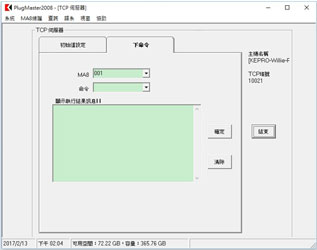

▲ Networking Management
Software PlugMaster ™ |
|
|
Industry-Leading RS232 / RS485 Wireless Platform
The MA8-9L provides the industry standard RS-232 and RS-485 interfaces that enable customers to seamlessly and Reliably route the serial data streams of up to 20Kbps to designated central IP address or DNS in data-transparent mode. The MA8-9L terminal comes with iron housing to be better deployed under robust environments.
Flexible IP Network Management and Application Integration
The 4G IP structure provides a more flexible Star network architecture and the central system can be established simply using a lease line/ADSL. With the PlugMaster Software provided by Kepro, customers can easily perform the IP/ID management of the remote devices. Also, the PlugMaster Software provides the mechanism for the integration of 3G network and the legacy application system through Real Com, Virtual Com or Database transfer. Kepro can also provide socket program or .dll for customers' own application development.
Ideal for Remote Monitoring & Control Applications
MA8-9L Terminals are best suited for low-data rate applications, and are ideal solution for serial data acquisition, remote monitoring and control. Examples include Industrial Automation, Environmental Monitoring, Intelligent transportation System, Access Control and Automated Meter Reading. |
|
| Benefits |
| ► |
Highly-reliable M2M Serial terminals. |
| ► |
Out-of-the- box prototyping of wireless network from industrial RS-232 and RS-485 serial ports. |
| ► |
Six LEDs indicate Power, GSM link and all the data traffic mode. |
| ► |
Easy-to use Plugene Software for terminal configuration. |
| ► |
Sophisticated PlugMaster Software for integration of 3G network and original application systems. |
| ► |
4G wireless network gives the best coverage and mobility. |
| ► |
"Always On" Wireless communication to give real time remote monitoring. |
| ► |
Full product documentations.
|
|
|

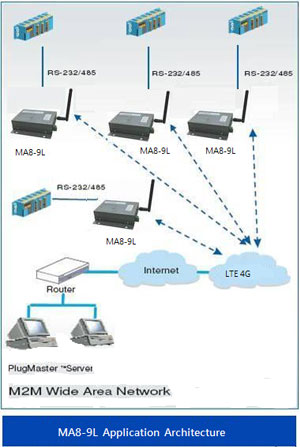

| Application Architecfure |
|
MA8-9L Specifications |
 |
|
| |
MA8-9L |
| Memory |
128K SRAM |
| Modulation |
4G 900/1800/2600 MHz |
| Size (L x W x H) |
102 x 70 x 27 mm |
| Watchdog |
Built-in |
| RS-232 |
Male DB-9 |
| RS-485 |
RS-485(2 Wire) |
| DC Input |
DC 9V~30V |
| Power consumption Standby |
≤0.8W |
| Operational |
≤1.5W |
| Operating Temp |
-20℃~85℃ |
| Storage Temp |
-40℃~85℃ |
| Humidity |
5%~95% |
| Certification |
CE、NCC |
|
|
|
|
| PlugMaster™ Installation Requirement |
|

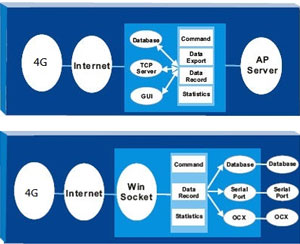

PlugMaster™ System Architecture |
| ► |
Windows NT (SP5) / Windows 2000 above |
| ► |
Pentium II 350 MHz above 64MB RAM |
| ► |
40MB HARD DISK |
| ► |
64K Internet line |
| ► |
1Fix IP and always on-line for Internet connection |
|
|
 |
|
|
|
|
|
|
| |
