| ► MA8-3g |
|
 |
|
| ▲ Appearance of the product |
|
|
|
| |
3G SMS M2M Terminal
Embedded with GSM module, MA8-3 is not only a modem, but also an intelligent gateway. MA8-3 product series is acted as a M2M platform for applications in telemetry , telematics , surveillance etc., and provides GSM data communication as well as SMS service through the W-CDMA (1900/2100) module . The interfaces with the terminal device are industrial standard RS-232. |
| |
|
| |
Features |
| |
| ► |
W-CDMA wireless communication platform |
| ► |
Digital Input and Digital output Interface |
| ► |
Watchdog chip |
| ► |
GUI configuration tool Plugene™ |
| ► |
Plug-&-Play |
|
|
|
|

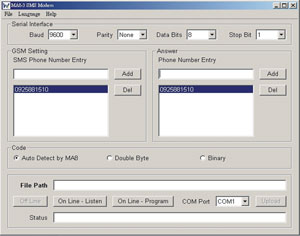

| Plugene™ Setting Software |
|
 |
|
Easy and convenient parameter setting
Send and receive objects objects enter the phone number you can easily send information through MA8-1g income. |
|
|
| Benefits |
| ► |
Wireless network reduces time and cost |
| ► |
Highly reliable serial data network |
| ► |
Plug-and-Play to configure communication format and content |
| ► |
automatically send SMS according to the specific events triggered |
|
|
|
|

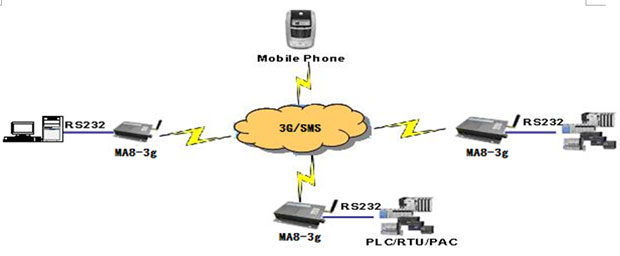

| MA8-3g Application Architecture |
 |
| |
| MA8-3g Specification |
| |
MA8-3g |
| Memory |
128K SRAM |
| Frequency |
GSM Module 900/1800/1900 Band |
| Data Transmission |
SMS |
| Size (LxWxH) |
70 x 102 x 27 mm |
| Watchdog |
Watchdog Built-in |
| Interface |
Male DB-9 |
| DC-Input |
DC9V~30V |
| Stand by |
0.27W~0.54W |
| Operational |
0.27W~1.03W |
| Operating Temp |
-20℃~85℃ (-4℉~185℉) |
| Storage Temp |
-40℃~85℃ (-40℉~185℉) |
| Humidity |
5%~95% |
| Certification |
CE、FCC Class A |
|
|
|
|
|
|
| |
