| ► MA32-RWA 4G Router |
|
 |
|

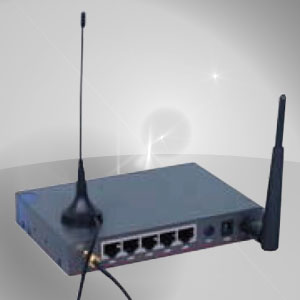

| ▲ MA32-RWA 4G Router |
|
|
|
| |
Easy Deployment of 4G M2M Application
Kepro's highly integrated MA32-RWA 4G Router provides the 4G data transparent communication for M2M application that operates in LTE 900/1800/2600MHz tri-band 4G frequency. Along with Web page, MA32-RWA supports easy configuration on the central IP/DNS and the parameters associated with local serial devices that a complete 4G M2M infrastructure can be quickly established. The compact and flexible terminals offer the quickest and easiest path to standard wireless IP networking, translating to shorter time- to-market in the deployment of your wireless enabled products. |
|
|
|
 |
|

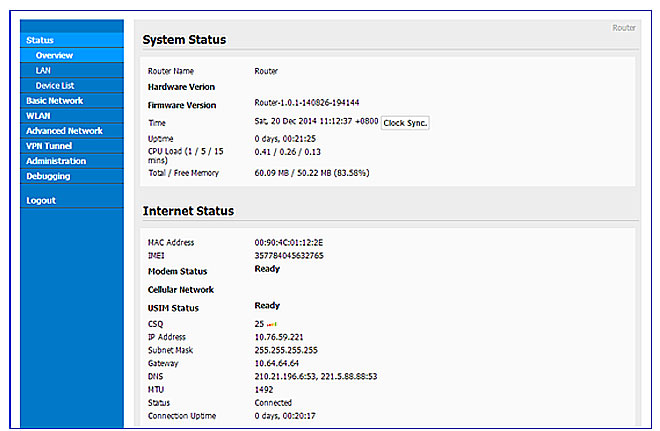

| ▲ M2M Router Configuration Web page TM |
|
|
Industry-Leading RJ45/RS-232 Wireless Platform
The MA32-RWA provides the industry standard RJ45/RS-232 interfaces that enable customers to seamlessly and Reliably route the Ethernet data streams of up to 100Mpbs to designated central IP address or DNS in data-transparent mode. The MA32-RWA 4G Router comes with iron housing to be better deployed under robust environments.
Flexible IP Network Management and Application Integration
The 4G IP structure provides a more flexible Star network architecture and the central system can be established simply using a lease line/ADSL. With the management Software provided by Kepro, customers can easily perform the IP/ID management of the remote devices. Also, the management Software provides the mechanism for the integration of 4G network and the legacy application system through Real Com, Virtual Com or Database transfer. Kepro can also provide socket program or .dll for customers' own application development.
Ideal for Remote Monitoring & Control Applications
MA32-RWA 4G Router is best suited for high-data rate applications, and are ideal solution for serial data acquisition, remote monitoring and control. Examples include Industrial Automation, Environmental Monitoring, Intelligent transportation System, Access Control and Automated Meter Reading. |
|
| Main Features |
| ► |
Highly-reliable M2M WiFi Router. |
| ► |
Out-of-the- box prototyping of wireless network from industrial RS-232 and RJ45 serial ports. |
| ► |
3 x LEDs indicate LAN, NET WAN all the data traffic mode. |
| ► |
8G SD embedded. |
| ► |
Advertising feature. |
| ► |
Sophisticated management Software for integration of 4G network and original application systems. |
| ► |
4G wireless network gives the best coverage and mobility. |
| ► |
"Always On" Wireless communication to give real time remote monitoring. |
| ► |
Full product documentations. |
|
|

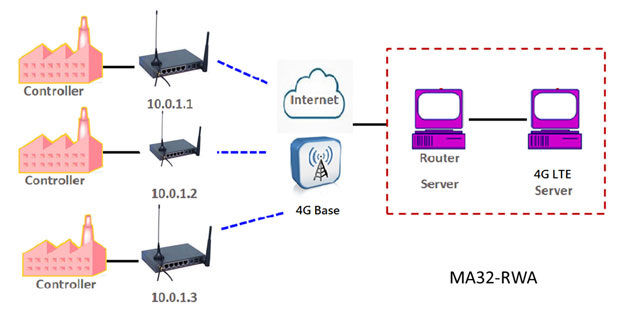

| MA32EL Application Architecture |
 |
|
| MA32-RWA 4G Specifications |
|
|
| |
MA32-RW |
M2M
WiFi |
LTE 900/1800/2600MHz
802.11b/g/n |
| Size (L x W x H) |
150 x 105 x 25 mm |
| Watchdog |
Built- in |
| Interface |
RJ-45 |
| Ethernet |
RJ-45, 10/100M |
| Web fun |
ICMP/IP/TCP/UDP/DHCP
PPP/ARP/TELNET/DNS
SSH/VRRP/HTTP/HTTPS |
| Power |
DC 9V~30V |
Setup
SD |
Wall mount
8GB |
| Surge Protect |
2KV |
| 15KV EDS |
Support |
| Operating Temp |
-25℃~70℃ |
| Storage Temp |
-40℃~85℃ |
| Humidity |
5%~95% |
| Certification |
CE、NCC |
|
|
|
|
|
|
|
|
|
|
