| ► IP-Link 1524 433MHz Module |
|
KDI IP-Link 1524 series modules support standard 433 MHz free frequency bands with long transmit range, low cost, high speed data rate, and the robust wireless mesh networking capabilities.
UNSURPASSED WIRELESS MESH
NETWORKING
Rely on KDI's development and practical experiences in the fields of micro power wireless networking technology since 2002, IP-Link 1524 series apply the KDI IP-Net Wireless Mesh Networking design. Whether in the network capacity, routing, or in the transmission rate, our IP-Link 1524 wireless modules have highly leading superiority in the industry. |
|
|
|
| ► |
Large scale network capacity |
| ► |
Leading network routing |
| ► |
Effective network transmission rate |
| ► |
Auto selection for best routing |
| ► |
Auto route recovery |
| ► |
CSMA/CA |
|
|
 |
|

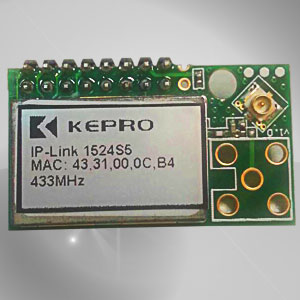

| ▲ Appearance of the product |
|
|
|
|
| KDI's IP-Link 1524 series modules also support Star and Linear topology. |
|
| Key Features |
| ► |
Frequency: 433MHz |
| ► |
Sensitivity: -121dBm |
| ► |
Transmit Power: up to +20dBm |
| ► |
Transmit Range: 1500m LOS |
| ► |
Data Rate: up to 256kbps |
| ► |
Receive Current: 25mA |
| ► |
Transmit Current: 94mA @ +20dBm |
| ► |
Sleep: 1uA |
| ► |
Supply Voltage: 1.8 ~ 3.6 VDC |
| ► |
Received Signal Strength Indicaiton |
| ► |
Range of Temperature: -40 ~ +85°C |
| ► |
Robust Wireless Mesh Network |
| ► |
OTA Wireless Configuration tool |
| ► |
CSMS/CA |
|
|
RELIABILITY & STABILITY IN TECHNICAL GRADE
KDI has accumulated rich experiences from our practical applications in the wireless networking technology, and established massive base for the IP-Link series modules networking reliability and stability. |
| ► |
-40〜+85℃ |
| ► |
Backup of key parameters |
| |
|
| FLEXIBLE NETWORK DEPLOYMENT & MAINTENANCE |
| ► |
OTA Wireles configuration tool |
| ► |
Route topology analysis tool |
| ► |
RSSI-based networking deployment tool |
|
|
|
| TYPICAL APPLICATIONS |
| ► |
Sensor networking |
| ► |
Industrial data transmission |
| ► |
Heat quantity dosimeter data |
| ► |
Energy consumption monitoring |
|
|
| ► |
Power meter reading |
| ► |
Grid monitoring |
| ► |
Light control management |
| |
|
|
|
|
|
|
|
|
| |
