| ► IP-Link 2200 Series Terminal Datasheet |
|
 |
|

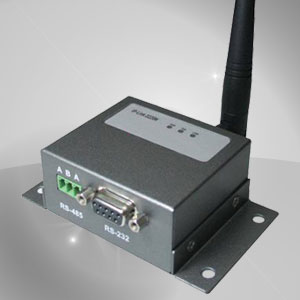

| ▲ Appearance of the product |
|
|
|
| |
Wireless Mesh Terminals for Ethernet, Serial Interface, Digital & Analog I/O
IP-Link 2200 Series Terminals operate on the
2.4GHz global ISM band. The compact and flexible IP-Link 2200 Series Terminals offer the quickest and easiest path to standards-based wireless networking, translating to shorter time-to-market in the development of your wireless M2M enabled product. |
|
|
|
 |
|
 |
|
|
|

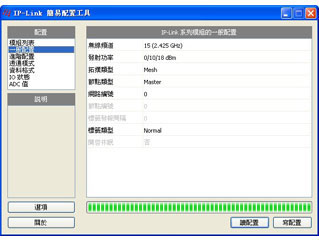

| ▲ MiniTool Network Management Software |
|
▲ Web for network management software |
|
|
INDUSTRY-LEADING RS232/485 WIRELESS PLATFORM

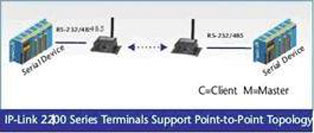

IP-Link 2200 Series Terminals function in an innovative,industry-standard RS232 / RS485 mode that enables customers to seamlessly and reliably route serial data streams wirelessly. If a network link is experiencing RF interference or interruption, the IP-Link Terminals will automatically re-route the data traffic over an alternate path. IP-Link Terminals provide cost-effective wireless communications of serial data streams over point-to-point nd point-to-multipoint configurations, and create simple ireless connectivity solutions for PC and other peripheral evices.
SEAMLESS INTEGRATION OF ZIGBEE WITH GPRS/CDMA
IP-Link 2200 Series Terminals allow you to implement and bench test both simple point-to-point and sophisticated mesh networks, to facilitate remote monitoring and control functions for a wide variety of industry applications. In addition to short-range wireless networking, the IP-Link Terminals can be connected to our GPRS/CDMA Terminal family to provide global monitoring and control expansion of your WPAN built with our M2M terminals. |
|
| KEY FEATURES |
| ► |
Ultra low power design M2M erial Terminals. |
| ► |
Industry-standard RS232/RS485,Ethernet, ADC, DIO ports. |
| ► |

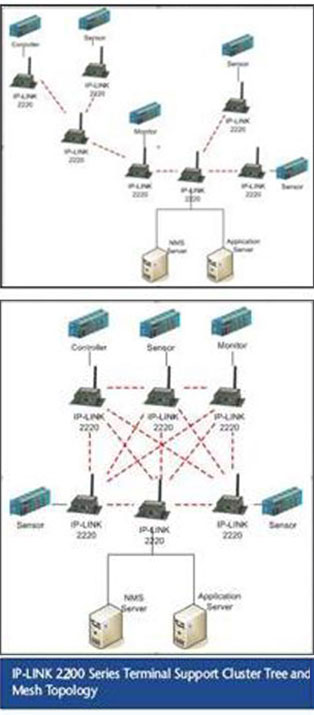

ZigBee serial data communications eaturing star, cluster tree and mesh etworking. |
| ► |
Total M2M solution enables ntegration of ZigBee technology ith GPRS/CDMA. |
| ► |
Easy-to-use MiniTool and 2220E Configuration Management Software for building, testing and monitoring custom ZigBee Networks. |
| ► |
Supports maximum of 65535 nodes. |
|
|
Specification
| |
IP-LinkTM 2220E |
IP-LinkTM 2220H |
IP-LinkTM 2250 |
| Frequency |
2.4GHz unlicensed ISM band |
| Modulation |
QPSK |
Max. Data
Rate |
250kbps |
| Receive Sensitivity |
-104dBm |
| Transmit Range |
1200m ( LOS) |
| RF Channels |
16 (5MHz) |
| Transmit Power |
20dBm |
| Transmit |
≦380mA |
≦205mA |
≦250mA |
| Receive |
≦165mA |
≦50mA |
≦100mA |
| Encryption (Option) |
AES |
| Certification |
FCC, CE |
| I/O |
RJ-45
10/100M |
RS-232/
RS-485 |
RS-232 /RS-485
ADC x 2
DIO x 8 |
| Power Input |
9 to 30VDC
600mA/ PoE |
9 to 30VDC
600mA |
9 to 30VDC
600mA |
| Consumption |
3.38 to 3.42W |
1.82 to 1.95W |
2.19 to 2.22W |
Dimension
（mm） |
107*57*30 |
62*54*29 |
107*57*31 |
| Operating Temp |
-20℃ to +70℃ |
| Humidity |
10% to 90% |
|
|
|
|
|
|
|
|
|
|
| |
