| ► MA32-R 3G Router |
|
 |
|

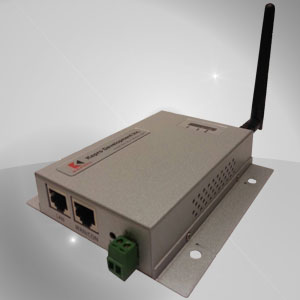

| ▲ Appearance of the product |
|
|
|
| |
MA32-R 3G Router is the internet of thing mobile broadband router and a machine to machine (M2M) industrial cellular router, which can optional works on WCDMA/UMTS 3G cellular network to provide reliable, secure and high speed wireless connectivity with GPS supported. It is powerful and programmable industrial mobile router with high performance and hardens casing design for remote management, telemetry, condition monitoring, CCTV, ATMs, vending machine and other M2M applications.
MA32-R 3G Router is an ideal wireless data transfer device for applications transferring large data load because of ultimately fast transfer speed in 3G network. VPN features also can be |
|
|
configured in MA32-R 3G Router, allowing you to utilize virtual private network service through a 3G wireless router and built for stresses and workload of a modern industrial or commercial environment.
Its compact small size design, enable MA32-R 3G Router easy to be embedded into other equipment or system.
The MA32-R 3G Router is with Ethernet capability, also come with a serial RS232 port. |
|
| Basic Features |
| ► |
Industrial robust design and compact metal housing |
| ► |
High data speed via WCDMA/UMTS 3G network, CDMAx2000 2.5G backward compatible |
| ► |
Strong electromagnetic interference Resistance |
| ► |
Heat endurance and radiation ability |
| ► |
Built-in watch dog, Multi-link detection |
| ► |
High Reliability: Hardware link self-recovery |
| ► |
GPS supported |
| ► |
WAN port support PPPoE, static IP, DHCP client |
| ► |
Failover/ Backup between WAN and Cellular network |
| ► |
Always online, reboot automatically if disconnected to ensure continual connection |
| ► |
Support APN and VPDN wireless private network access in |
| ► |
LCP/ICMP/flow/heartbeat check, ensure network usability |
| ► |
Web/CLI/SSH/Management platform support, easy configure |
| ► |
SNMP network management, NTP support |
| ► |
Local & remote management (configuration, status, upgrade firmware) |
| ► |
Supports DHCP Server |
| ► |
Supports DNS proxy and Dynamic DNS (DDNS) |
| ► |
Supports timing operation |
| ► |
Supports LED status indication |
| ► |
Shock and vibration resistant |
| ► |
CE, ROHS, EMC |
|
|
| MA32-R Specification |
| Supports Mobile Network |
| ► |
FDD LTE/TDD LTE |
| ► |
WCDMA/UMTS/HSPA/HSPA+
|
| ► |
EDGE/GPRS |
| ► |
CDMA2000 EVDO/CDMA 1X |
|
Ethernet Standard |
| ► |
IEEE 802.3 |
| ► |
IEEE 802.3u |
|
| Interface |
| ► |
1x10/100Mb LAN interface |
| ► |
1x10/100Mb WAN interface |
| ► |
1 x RS-232 console Port(optional) |
| ► |
2 x SMA-K antenna interface
|
| ► |
1 x Standard SIM/R-UIM interface |
| ► |
1 x Standard DC power interface |
|
LED instruction |
| ► |
SYSTEM |
| ► |
Power |
| ► |
WLAN |
| ► |
WAN |
| ► |
LAN(LAN1~LAN4) |
|
| Route Protocol |
| ► |
Static route |
| ► |
RIPv2/OSPF dynamic route
|
|
Powersupply |
|
| Device management |
| ► |
Local or remote web |
| ► |
browser(IE v8 or above)
CLI/Telnet command
|
| ► |
M2M management platform(optional) |
| ► |
SSH configure(optional) |
|
WiFi |
| ► |
Standard:
IEEE802.11b/g/n
|
| ► |
WEP,
WPA and WPA2 encryption
Standard |
| ► |
150Mbps,
300Mbps optional |
| ► |
AP,Client,
station,
bridge mode support |
|
| Firewall & Filter |
| ► |
IP packet/Domain/MAC filter |
| ► |
NAT |
| ► |
DMZ |
|
VPN |
| ► |
IP Sec |
| ► |
PPTP/L2TP client |
| ► |
GRE/IPIP |
|
| Power Consumption |
| ► |
Idle 80mA@+12VDC |
| ► |
Single Module Communications:
320mA@+12VDC
|
|
Other |
| ► |
Dimension:
103mm x 73.5mm x 25.5mm(not including antenna)
|
| ► |
Weight: 300g |
| ► |
Operation temperature: -30~+70℃ |
| ► |
Store temperature: -40~+85℃ |
| ► |
Related humidity:
<95%
(non-condensing) |
| ► |
Guarantee: one year |
|
| Standard |
EN300 328 v1.7.1(2006-10)
EN 301 489-17
EN301 489-1 EN301 511
EN301 908-1 EN301 908-13
EN55022:2010/AC:2011 EN60950-1
EN55024:2010 EN61000-3-2
EN61000-3-3:2008 EN62311:2008 |
Approval |
CE
RoHS |
|
|
|
|
|
|
| |
