| ► IAQ - Accelerate Wireless IOT Solution |
|
 |
|

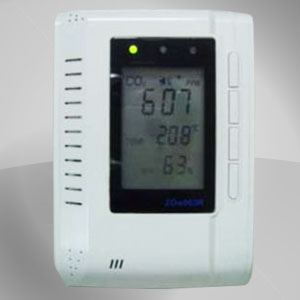

| ▲ Appearance of the product |
|
|
|
| |
| KEY FEATURES |
| ► |
Wireless Sensor Network & IOT Application. |
| ► |
Industry-standard IEEE 802.15.4, ZigBee |
| ► |
Robust topology featuring star, cluster tree and mesh networking. |
| ► |
All-in-One Sensor Embedded for Temperature, Humidity and CO2. |
| ► |
Easy-to-use Monitoring Tool and Easy-to develop API. |
|
|
|
|
|
| Order List |
| IP-Link 1501 ZigBee H/T/CO2 Sensor |
| Frequency |
2.4GHz unlicensed ISM band |
| Standard |
IEEE 802.15.4 |
| Data Rate |
250 kbps |
| Sensitivity |
-95dBm |
| RF Channel |
16 (5 Mhz) |
| RF Power |
0dBm |
| Power Source |
5 VDC |
| Temperature Range |
0 ~ 50 ° C |
| Temperature Resolution |
0.1 ° C |
| Temperature Accuracy |
±0.1 ° C |
| Humidity Range |
20 ～ 90 % RH |
| Humidity Resolution |
1% RH |
| Humidity Accuracy |
±5% RH@23°C |
| CO2 Range |
0 ~ 3000ppm display |
| CO2 Resolution |
1ppm at 0 ~ 1,000ppm;
5ppm at 1,001 ~ 2,000ppm;
10ppm at 2,001 ~ 3,000ppm |
| CO2 Accuracy |
0 ~ 2,000ppm, ± 70 ppm |
| Temperature Range |
0°C to 50°C |
| Humidity Range |
0 ~ 95% relative humidity (RH) |
| Size: (mm) |
130 L x 86 W x 26 H |
| Weight |
180g |
| Mounting |
Wall |
| Warranty |
1 year limited |
|
|
|
|
|
